TRACY® is the Perfect Lighting
Solution for Carports

The sleek design and bright light of LED iBonds TRACY® lighting system blends perfectly into any Carport. The LEDs high light quality and a market-leading lifespan offering an attractive lighting ambience and safety at open Carports. It is almost invisible and do not reduce ceiling height. The panels are extendable, which enables a customized fit for any size and design of your Carport.

MADE IN DENMARK

NORDIC DESIGN

The TRACY® light system is designed in Denmark according to Nordic design traditions focused on simplicity, functionality and elegance.

These tradititions reflects clearly in the TRACY® lighting system for Carports characterized by:

  • Minimalistic size and appearance
  • Excellent lighting specifications
  • Less industrial design
  • High-end lighting ambience
  • Robust quality
  • Natural recyclable materials
  • Flexible usage
Made of aluminum
Minimalistic design
96.6% of TRACY® can be recycled
Flexible and robust
Previous slide
Next slide

IMPRESSIONS

Images from Bluetop Solar Parking, Greenbodies and Soliport.

KEY BENEFITS

Small size - 6 x 40 mm

Less cables
Interconnectable up to 75m

Flexible power connection

Easy click-on installation

Modular and flexible

Costumizable light spectrum

LED iBond Light Management and compatible with e.g. DALI

Weather resistant

Perfect light distribution

96,6% product recyclability

Market leading product lifespan

Designed and manufactured in Denmakr

Light Quality

Light distribution and homogenity

The linear TRACY® lightpanels provides both significantly better light distribution and homogeneity reducing shadows and areas with low light intensity than traditional LED fixtures.
The TRACY panels also has a lower power consumption.

Daylight quality

The TRACY® system for parking garages are available in a color range from 3000K to 6500k and a CRI up to 90.
This provides a color reproduction that is very close to natural daylight.

EXAMPLE:

Traditional LED light fixtures

Uneven light distribution and low homogenity.

Ground floor: 325 m2

Light output: 108.000 Lumen

Flux minimum:  <20

4 (2×2) light points

Power consumption: 744 Watt

LED iBond TRACY® LED light panels

Excellent light distribution and high homogenity.

Ground floor: 325 m2

Light output: 108.000 Lumen

Flux minimum:  >40

72 (8×9) light points

Power consumption: 633 Watt.

QUICK INSTALLATION

It takes less than  45 sec. to install 5,4 meters of in-line TRACY® panels.

Video guides help you through every step of the installation.

Download installation guide

Colourful Solutions

TRACY® is avalilable in a variety of colours

Beside our standard colours silver and black, TRACY® can be delivered in a variety of colours to fit perfectly into your building design.

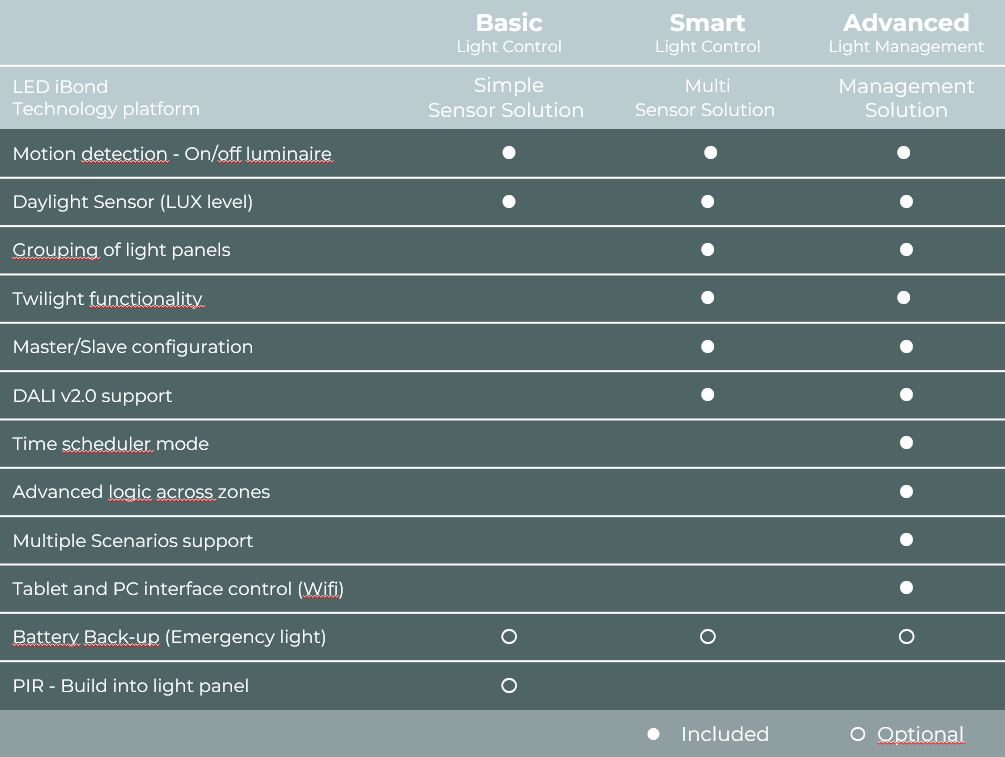

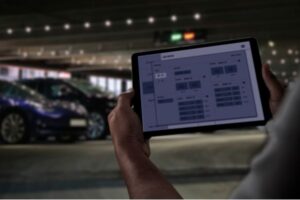

Light Management

The right light when you need it

LED iBond offers a range of light control and management solutions designed to control light flux from detecting vehicle or people movement, daylight level and time of day to complete lighting scenarios for an entire area.

All with the aim of improving the lighting experience, increasing safety and maximizing energy savings.

Customizable

No other lighting solution is easier to customize to fit perfectly into any parking building.
The TRACY® lighting system is modular and highly flexible by design.

Specifications
TRACY® Industry

Technology LED
Material Aluminum
Length 300 mm – 1800 mm
Height 6 mm (7 mm, water protection)
Voltage 24 VDC
Power consumption 1,7 W / LED spot (max 3,6 W)
IP IP67
Luminous flux 200 lm / LED spot (max 450 lm)
Color temperature 3000K or 4000K
Color rendering index +90
Dimmable Yes
Country of Origin Denmark
UN SDG 13 - Climate action

CLIMATE ACTION

As a leading technology developer, LED iBond facilitates and supports the propagation of energy-saving LED-technology for climate improvements.

Frequent Questions

If your carport lighting only operates on/off, our intelligent light control system with light- and movement sensors can reduce your cost by up to 80%.

You can further adjust light, lux and lumen with most common lighting control systems like DALI.

Safety and comfort for visitors can made by customized lighting in different zones. Dimming of light zones that lights up when needed by detecting movement. No shadows that make visitors uncomfortable.

Lighting design for carports requires specific knowledge and includes a number of considerations from best practice regarding energy efficiency, lighting control, user experience, security issues and maintenance costs to specific rules and regulations.

The 6 mm TRACY® panels provides optimized lighting distribution and well lighted safe environment. With the master control system for scenario design of the visual light, dimming and requested light settings for a specific LUX on ground.

The Tracy® solution offers battery back-up solution for emergency lighting keeping a part of the main lights active when power fails.

 LED iBonds  light design engineers can provide specialist expertise on lighting solutions for your next carport projects.

We are taking up the battle against useless plastic strips and other poor quality light panels.

The TRACY®-solutions low energy consumption significantly reduces the CO2 emission. Our solution is made of 100% recycled aluminum and 96.6% of the product is recyclable.

All building materials are individually measured and evaluated in building directives. LED iBond is constantly improving our products towards a more sustainable and environmentally friendly solution.

TRACY® is a high quality product developed and manufactured in Denmark:

  • IP67 rating making it weather, water and dust resistant
  • Easy to clean with smooth surface and chemical resistant.
  • Vandalism safe due to the slim and robust design that does not allow birds to sit, nest or interact with the panels.

The TRACY® panels are mounted directly onto the beams with simple click-on brackets and directly interconnected to create a linear system which fits the building structure perfectly.

TRACY® panels can be customized to fit any length to match your Carport design.

  • Easy installation and maintanaince
  • Easy to reduce or add new lighting zones
  • Easy click-on installation, extendable up to 40 m and 100 LEDs with only one power connection


The slim almost invisible design and bright lighting of the light fixtures perfectly integrate into  any carport construction.

Go to the top of this page to request more information on linear-, separated- and corner solutions.

1. Scalable solution
Tracy® panels are extendable up to 40 m and 100 LEDs with only one power connection. The TRACY® system uses standard panels with a length of 1800mm and consist of 4 spots each with a spacing of 45 cm.

2. Weather proof
LEDs are covered with a protective glass and are rated IP67, while the drivers are IP65.

3. Less shadows and high avg. lux on the ground
Choose a light distribution optic with a angle of up to 125 degrees and dimmable LEDs power to enable more light, if necessary.

4. Easy installation
The TRACY® panels are mounted directly onto the purlins with simple click-on brackets and are directly interconnected to create a linear system which fits the building structure perfectly, while minimizing the need for wiring as the panels are electrically conductive.

5. Reduced use of plastic wires and PSU
The interconectivity of the TRACY® solution reduces the required amount of plastic strips and number of Power Source Units (PSU/Drivers).
